StreamCaster TRINITY
StreamCaster TRINITY: Dual Band MIMO Array
Rapidly Deployable High Performance Mesh Networks
Dual Band MIMO Transceiver Array

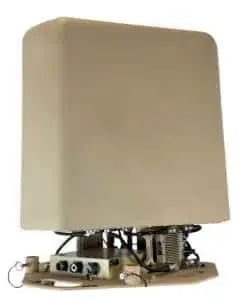

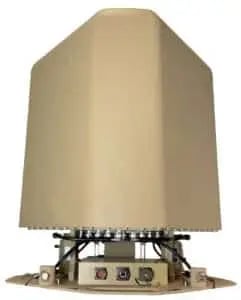

StreamCaster TRINITY delivers high bandwidth, long-range mesh network communications in any environment. Featuring a unique Trilobe design, each of StreamCaster TRINITY’s three, high-gain 12 dbi sector antennas provide 120° of coverage, extending the area of operation for manned/unmanned air and ground assets. Use them independently or together to achieve up to 360° of coverage.
StreamCaster TRINITY Features
- Unique Trilobe Design – Built-in Dual S/C Band
- 12 dBi High-Gain Antennas – Achieve 360° of Coverage
- Network Flexibility – Independent 120° Sectors support Individual Networks
- Integrated SC4400E MANET radios – Up to 20W Output Power per Sector
- 50km+ Link Range – Create an operationally unified mesh network
- Rapidly Deployable (<60 min.) –Dual Case Packout, Flexible Mounting Options
StreamCaster 4400 Enhanced (SC4400E)
Key Features
- Unique Trilobe Design – Built-in Dual S/C Band
- 12 dBi High-Gain Antennas – Achieve 360° of Coverage
- Network Flexibility – Independent 120° Sectors support Individual Networks
- Integrated SC4400E MANET radios – Up to 20W Output Power per Sector
- 50km+ Link Range – Create an operationally unified mesh network
- Rapidly Deployable (<60 min.) –Dual Case Packout, Flexible Mounting Options
4X4 MIMO Radio
StreamCaster TRINITY combines the performance of dual-band (S/C) StreamCaster MANET radios with a high-gain antenna array to deliver up to 360° of coverage for air and ground applications.
SC4400E Features
- Up to 20 Watts Output Power (80W effective radiated power, thanks to TX Eigen Beamforming)
- Dual S/C Band (2200-2500 MHz; 4400-4940 MHz)
- Up to 100 Mbps Data Rate
.webp?width=640&height=398&name=STREAMCASTER%204400%20ENHANCED%20(SC4400E).webp)
Delivering High Bandwidth, Long-range Communications With 360° Area Coverage
Tactical Operations | Air-to-ground Link | Fixed Infrastructure
Applications
Military
Command Center, At-the-Halt Communications Relay
Law Enforcement
Extend the reach of Tactical Bubble Mesh Network
Public Safety & Event Security
Disaster Response and Security Communications Network
Unmanned Systems & Broadcasting
C2 & Comms Relay – Connecting Multiple Operators & Platforms
