StreamCaster Radios

THE FIRST AND Still the MOST Advanced
TACTICAL MIMO RADIOS

In 2011, Silvus introduced the world’s first tactical MIMO radios – and we’re still pushing the industry forward today. Our background in DARPA-funded R&D paved the way for robust wireless networking for high-stakes industries such as military, law enforcement, and broadcast.

The 4000-series of StreamCaster radios represents the latest generation of continual improvement in size, weight, power, efficiency, cost, and capability.

STREAMCASTER LITE 4200 (SL4200)

2X2 MIMO RADIO

50% thinner, 30% lighter, 100% Silvus

SL4200 is a low-SWaP, low-cost 2×2 MIMO radio powered by the same MN-MIMO waveform as our flagship StreamCaster counterparts.

SL4200 FEATURES

  • Up to 1 Watt of power (2W effective thanks to TX Eigen Beamforming)
  • Available as rugged brick or non-rugged OEM

  • SL4200 Rugged No Accessories

  • SL4200 Rugged Accessories

  • SL4200 OEM

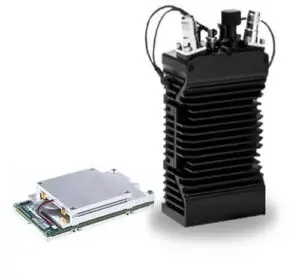

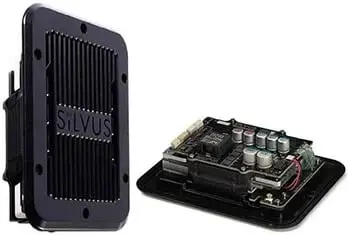

STREAMCASTER 4200 ENHANCED PLUS (SC4200EP)

2X2 MIMO RADIO

Portability meets performance.

SC4200EP is a 2×2 MIMO radio, delivering best-in-class performance and efficiency in a miniature package. It is ideal for use in portable and embedded applications where size, weight, power or cost are key.

SC4200EP FEATURES

  • Up to 10 Watts of output power (20W effective performance, thanks to TX Eigen Beamforming)
  • Available in 4 form factors to suit a variety of applications:
    • Rugged “brick” (externally powered)
    • Rugged handheld (w/ twist-lock battery connector)
    • Non-rugged OEM (for embedding in custom products and sub-systems)

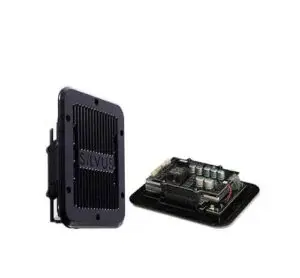

    • Drop-in Module (plug-and-play integration into platform subsystems)

  • SC4200EP - Externally Powered

  • SC4200EP - Battery Powered

  • SC4200EP - OEM

  • SC4200EP Drop-In Module

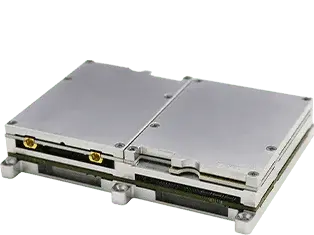

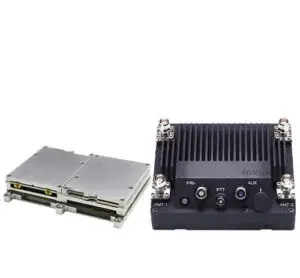

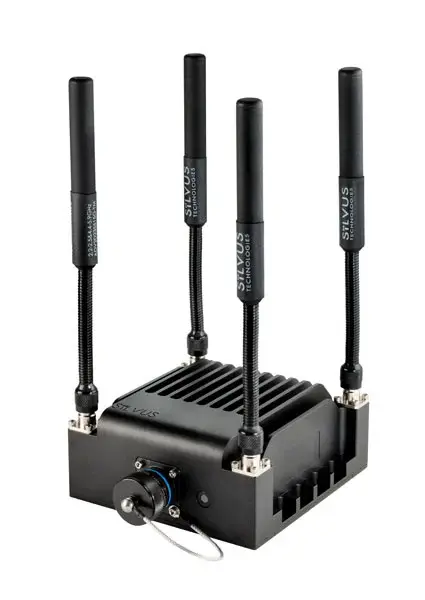

STREAMCASTER 4400 ENHANCED (SC4400E)

4X4 MIMO RADIO

With great power comes great capability.

SC4400E delivers the power of 4×4 MIMO in a ruggedized package. SC4400E is ideal for use in fixed infrastructure, vehicular, long range, and airborne applications where maximum performance is desired.

SC4400E FEATURES

  • Up to 20 Watts of output power (80W effective performance, thanks to TX Eigen beamforming)
  • Rugged outdoor rated housing with optional pole mount and surface mount hardware available
  • Available in 3 form factors to suit a variety of applications:
    • Rugged with straight RF connectors (designed to be mounted horizontally)
    • Rugged with right angle RF connectors (designed to be mounted vertically)
    • Non-rugged OEM (for embedding in custom products and sub-systems

STREAMCASTER KEY FEATURES

Powered by the cutting-edge MN-MIMO waveform:

COFDM

  • Auto link adaptation to continually optimize throughput in dynamic environments
  • Exceptional Multipath and NLOS performance
  • Enhanced mobility for high-speed platforms
  • 1.25/2.5/5/10/20 MHz bandwidth modes

MIMO

  • TX Beamforming – Up to 4X Effective Transmit Power, delivering increased range and throughput
  • Spatial Multiplexing (enhanced throughput)
  • Space Time Coding (enhanced robustness)
  • RX Beamforming (enhanced reception)

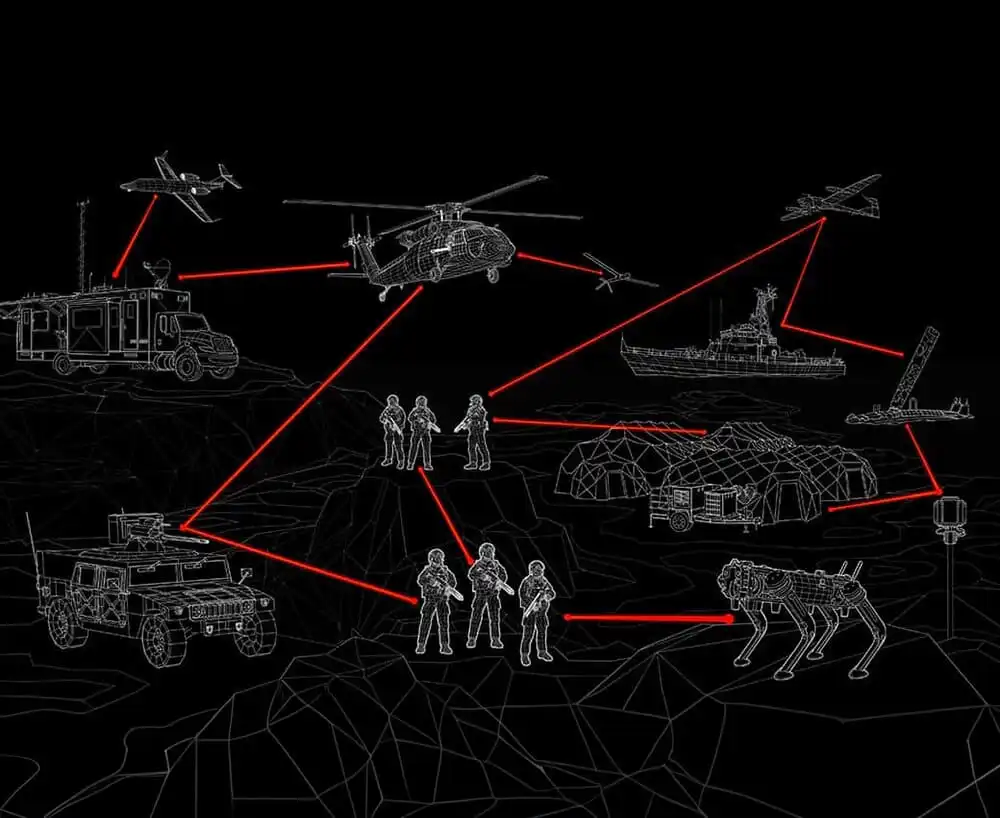

MOBILE AD HOC NETWORKING (MANET)

  • Self-healing/self-forming mesh
  • Single frequency Time Division Duplexing (TDD)
  • Up to 559 nodes in a single network
  • All topologies supported including star, hub/spoke, series/relay, fixed backbone infrastructure, and hybrid



ADDITIONAL FEATURES

  • Rugged IP68 construction

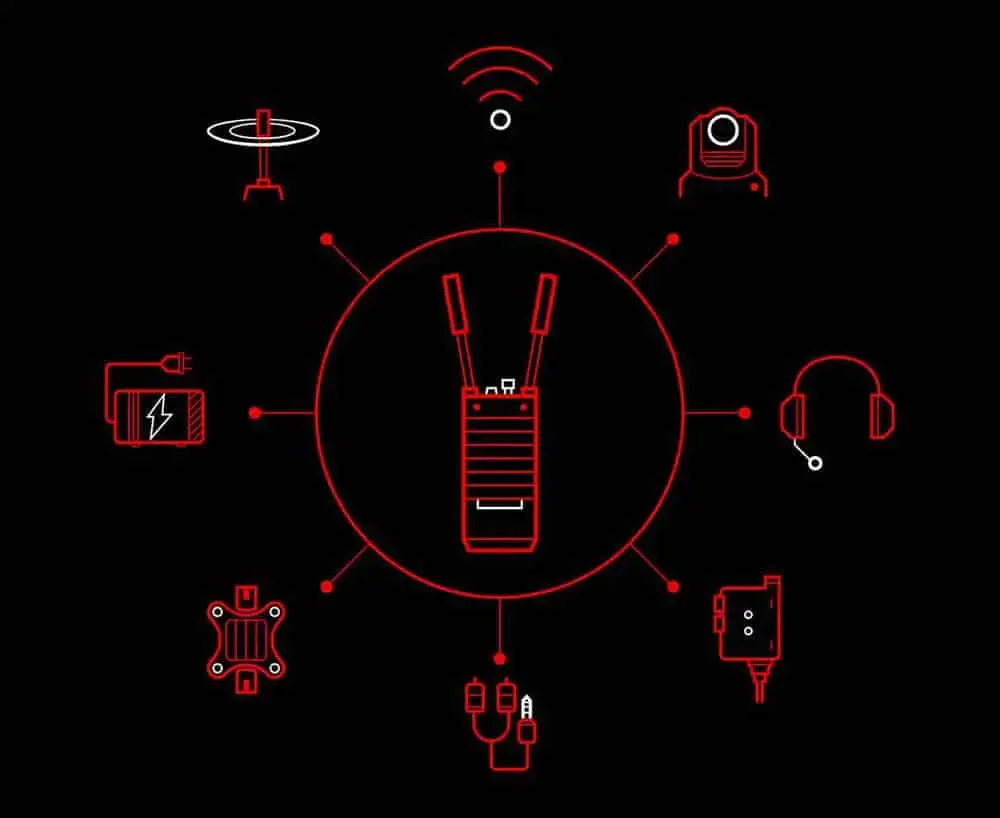

  • 1 x Ethernet, 2 x USB, 1 x RS232 interfaces
  • Push-to-talk (PTT) voice with HD quality G.722 encoding
  • Up to 128GB onboard storage
  • AES256 encryption (FIPS140-2 w/ Suite B algorithms)
  • WiFi and GPS via external dongles
  • Dual frequency bands in a single radio (most licensed and unlicensed bands available)
  • Ultra-low latency (avg. 7ms per hop)
  • Embedded network management GUI with advanced tools and diagnostics
  • Cursor on Target (CoT) messaging for interoperability with ATAK, WinTAK, and iTAK
  • User-customizable multiposition switch for loading presets and zeroizing crypto
  • RoIP tethering and dual PTT
  • Smart battery % monitoring (for SC4200EP)

SPECTRUM DOMINANCE

Expansive suite of LPI/LPD and Anti-Jamming resiliency capabilities.
Achieve secure and protected communications without sacrificing performance.


STREAMSCAPE

THE INDUSTRY’S FAVORITE NETWORK MANAGEMENT GUI

Powerful network management software – embedded in every StreamCaster radio, and accessible from virtually any computer, laptop, tablet, or smartphone.

  • Network topology page – an intuitive graphical illustration of signal strengths and congestion across the network
  • Table view – a tabular representation of network metrics including signal interference levels, traffic statistics, and air time usage
  • Map overlay – track the GPS location and status of nodes in real time on local, cloud-based, or user-supplied maps
  • Network-wide admin tools – update settings, load profiles, and update firmware on one node or on the network as a whole
  • Essential diagnostics – RF spectrum analyzer, temperature and voltage monitoring, and automatic alarms



STREAMSCAPE 5

Firmware Update Now Available

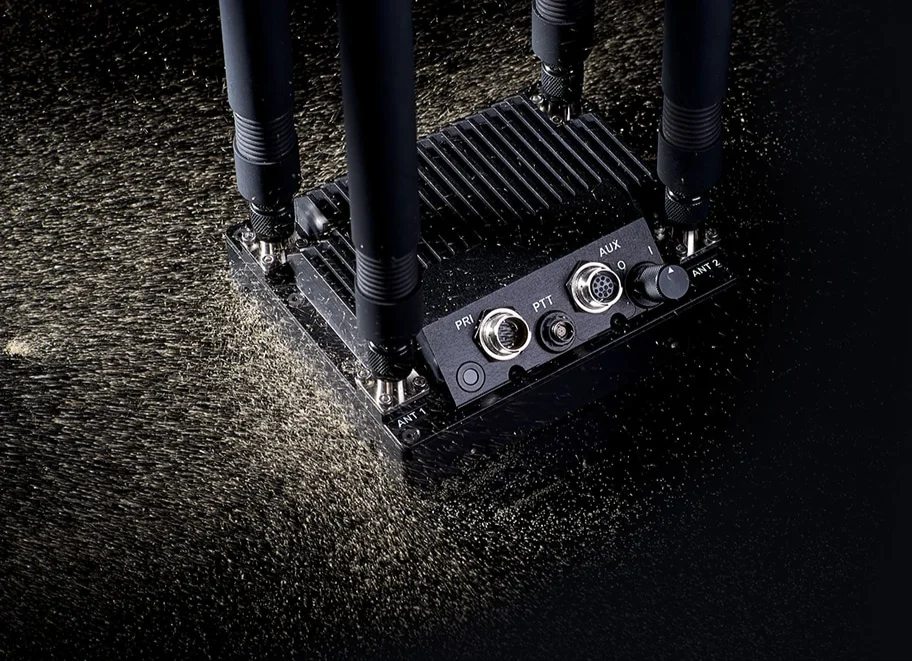

HARSH CONDITIONS. UNPREDICTABLE CIRCUMSTANCES.

WATCH STREAMCASTER PREVAIL.

WE DON’T JUST CLAIM SUPERIORITY. WE PROVE IT.

Not only do we build superior technology, we help you get the most from it. Out-of-the-box functionality. Ongoing support. Relentless research and development. Contact our sales team to discover how we’re leading the MIMO revolution.
