STREAMCASTER 4200 ENHANCED PLUS

THE FIRST AND Still the MOST Advanced
TACTICAL MIMO RADIOS

In 2011, Silvus introduced the world’s first tactical MIMO radios – and we’re still pushing the industry forward today. Our background in DARPA-funded R&D paved the way for robust wireless networking for high-stakes industries such as military, law enforcement, and broadcast.

The 4000-series of StreamCaster radios represents the latest generation of continual improvement in size, weight, power, efficiency, cost, and capability.

FEATURE VIDEO

Dedicated To One Mission

FEATURE VIDEO

StreamCaster SC4200 Overview | Setting Up A Silvus StreamCaster MANET Radio

STREAMCASTER 4200 ENHANCED PLUS (SC4200EP)

2X2 MIMO RADIO

Portability meets performance.

SC4200EP is a 2×2 MIMO radio, delivering best-in-class performance and efficiency in a miniature package. It is ideal for use in portable and embedded applications where size, weight, power or cost are key.

Blue UAS Framework Certified – SC4200EP is NDAA and DoD cybersecurity compliant, and is approved for use in conjunction with Blue UAS platforms.

SC4200EP FEATURES

  • Up to 10 Watts of output power (20W effective performance, thanks to TX Eigen Beamforming)
  • Available in 4 form factors to suit a variety of applications:
    • Rugged “brick” (externally powered)
    • Rugged handheld (w/ twist-lock battery connector)
    • Non-rugged OEM Module (for embedding in custom products and subsystems)
    • Drop-in Module (plug-and-play integration into platform subsystems)

Learn More – Request Access

Blue UAS Certified Badge

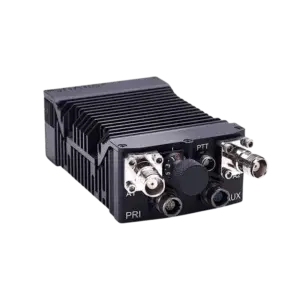

  • SC4200EP - Externally Powered

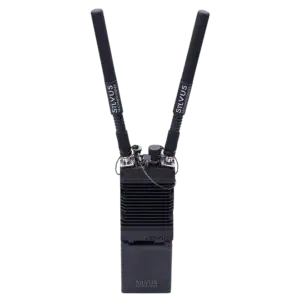

  • SC4200EP - Battery Powered

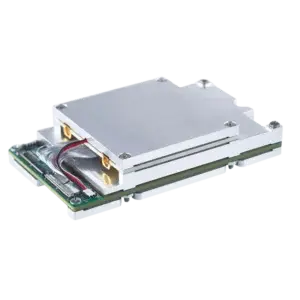

  • SC4200EP - OEM

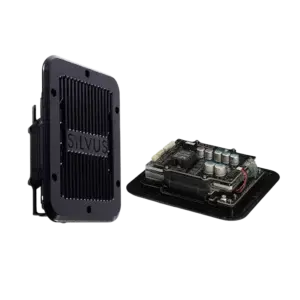

  • SC4200EP Drop-In Module

STREAMCASTER KEY FEATURES

Powered by the cutting-edge MN-MIMO waveform:

COFDM

  • Auto link adaptation to continually optimize throughput in dynamic environments
  • Exceptional Multipath and NLOS performance
  • Enhanced mobility for high-speed platforms
  • 1.25/2.5/5/10/20 MHz bandwidth modes

MIMO

  • TX Beamforming – Up to 4X Effective Transmit Power, delivering increased range and throughput
  • Spatial Multiplexing (enhanced throughput)
  • Space Time Coding (enhanced robustness)
  • RX Beamforming (enhanced reception)

MOBILE AD HOC NETWORKING (MANET)

  • Self-healing/self-forming mesh
  • Single frequency Time Division Duplexing (TDD)
  • Up to 559 nodes in a single network
  • All topologies supported including star, hub/spoke, series/relay, fixed backbone infrastructure, and hybrid



ADDITIONAL FEATURES

  • Rugged IP68 construction
  • 1 x Ethernet, 2 x USB, 1 x RS232 interfaces
  • Push-to-talk (PTT) voice with HD quality G.722 encoding
  • Up to 128GB onboard storage
  • AES256 encryption (FIPS140-2 w/ Suite B algorithms)
  • WiFi and GPS via external dongles
  • Dual frequency bands in a single radio (most licensed and unlicensed bands available)
  • Ultra-low latency (avg. 7ms per hop)
  • Embedded network management GUI with advanced tools and diagnostics
  • Cursor on Target (CoT) messaging for interoperability with ATAK, WinTAK, and iTAK
  • User-customizable multiposition switch for loading presets and zeroizing crypto
  • RoIP tethering and dual PTT
  • Smart battery % monitoring (for SC4200EP)

SPECTRUM DOMINANCE

Expansive suite of LPI/LPD and Anti-Jamming resiliency capabilities.
Achieve secure and protected communications without sacrificing performance.


STREAMSCAPE

THE INDUSTRY’S FAVORITE NETWORK MANAGEMENT GUI

Powerful network management software – embedded in every StreamCaster radio, and accessible from virtually any computer, laptop, tablet, or smartphone.

  • Network topology page – an intuitive graphical illustration of signal strengths and congestion across the network
  • Table view – a tabular representation of network metrics including signal interference levels, traffic statistics, and air time usage
  • Map overlay – track the GPS location and status of nodes in real time on local, cloud-based, or user-supplied maps
  • Network-wide admin tools – update settings, load profiles, and update firmware on one node or on the network as a whole
  • Essential diagnostics – RF spectrum analyzer, temperature and voltage monitoring, and automatic alarms



STREAMSCAPE 5

Firmware Update Now Available

HARSH CONDITIONS. UNPREDICTABLE CIRCUMSTANCES.

WATCH STREAMCASTER PREVAIL.

WE DON’T JUST CLAIM SUPERIORITY. WE PROVE IT.

Not only do we build superior technology, we help you get the most from it. Out-of-the-box functionality. Ongoing support. Relentless research and development. Contact our sales team to discover how we’re leading the MIMO revolution.

The following notice applies to the sale, lease, or offer of this device other than the sale or lease of this device for use by the United States Government or for export of this device:

This device has not been authorized as required by the rules of the Federal Communications Commission. This device is not, and may not be, offered for sale or lease, or sold or leased, until authorization is obtained.

Please contact Silvus if you have questions about the FCC approval status or requirements that pertain to this device including whether an FCC approved version of this device is available and the sale or lease of this device for use by the United States Government or for export. Devices that are exported are subject to the laws of the countries into which the devices are exported.
