STREAMCASTER MINI 5200

THE NEXT GENERATION OF TACTICAL MANET RADIOS

Trusted by Defense, Government, and Public Safety agencies around the world, StreamCaster MANET radios deliver high-fidelity video, voice, and IP data communications at mission speed.

The 5000-series of StreamCaster radios represent the Next Generation of Silvus’ MANET radio technology – optimized for size, weight, and power – and built to excel in the harshest conditions.

Powered by Silvus’ proprietary MN-MIMO waveform ensures seamless compatibility with all 4000-series StreamCaster radios for unmatched performance wherever the mission takes you.

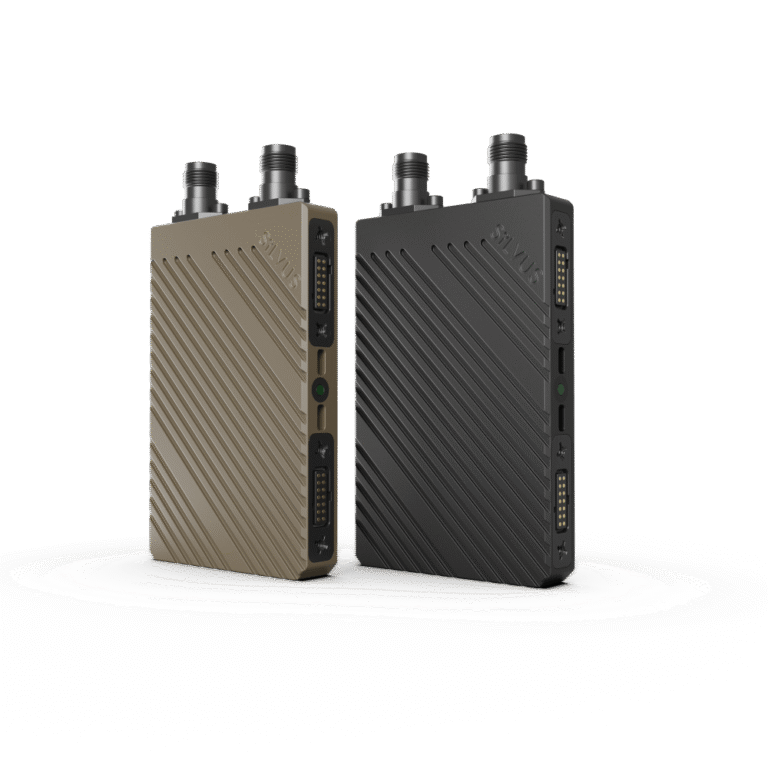

STREAMCASTER MINI 5200 (SM5200)

ADVANCED networking at mission Speed

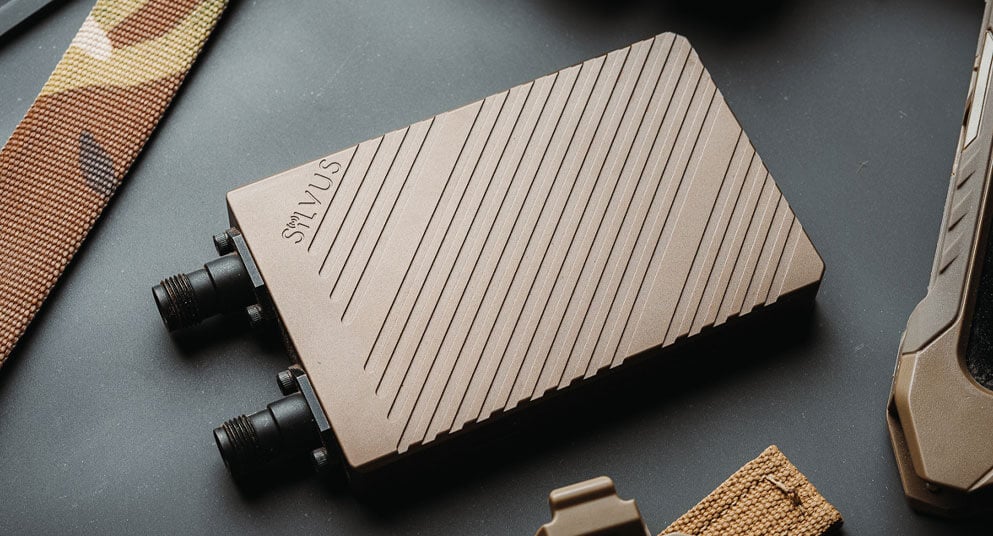

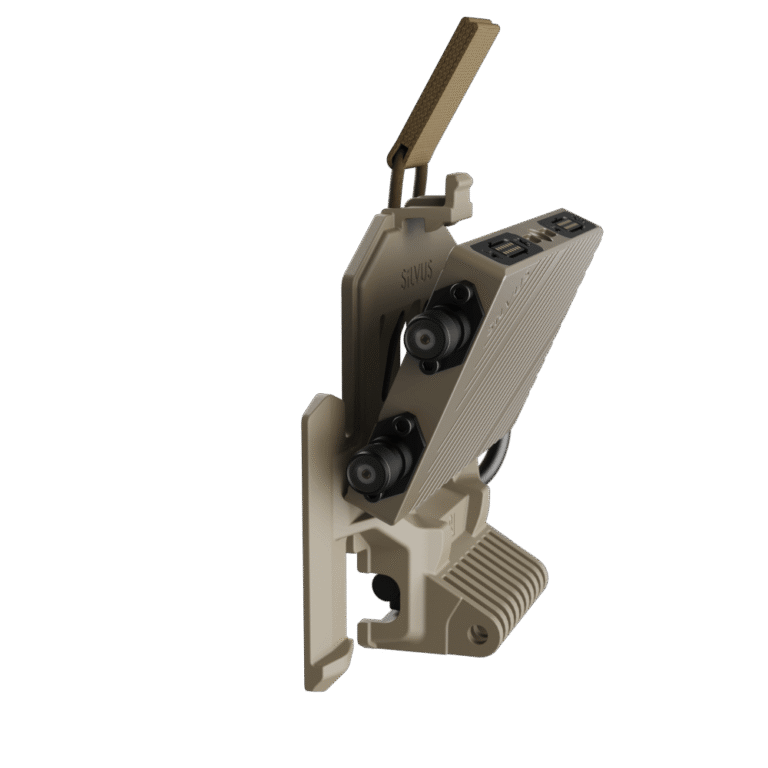

The ultra-slim SM5200 delivers the performance of a 2×2 MIMO radio in a rugged, low-profile design. The most compact fully-featured StreamCaster MANET radio ever built, it can be combined with the StreamCaster NEXUS Tactical Networking System via a quick-release, snap-lock system or used as a standalone radio for mission-critical operations.

Powered by Silvus’ battle-proven MN-MIMO waveform, the SM5200 is capable of linking hundreds of nodes with unmatched range, data throughput, EW resilience and scalability. Dual PTT provides precise comms control, while a dedicated RoIP interface bridges LMR systems into the Silvus mesh network. Multiple I/O options (Ethernet, USB, RS232) ensure plug-and-play connectivity to networked devices. With available access to Spectrum Dominance 2.0 – an ever-expanding suite of LPI/LPD, Anti-Jamming and Advanced Threat Protection capabilities – the SM5200 ensures secure, resilient connectivity in contested environments without sacrificing performance.

KEY FEATURES

  • Up to 2 Watts output power (4W effective, thanks to TX Eigen Beamforming)
  • Up 100 Mbps Data Throughput
  • MN-MIMO waveform: 550+ node scalability
  • Single/Dual Band Frequency Options
  • Dedicated RoIP Interface

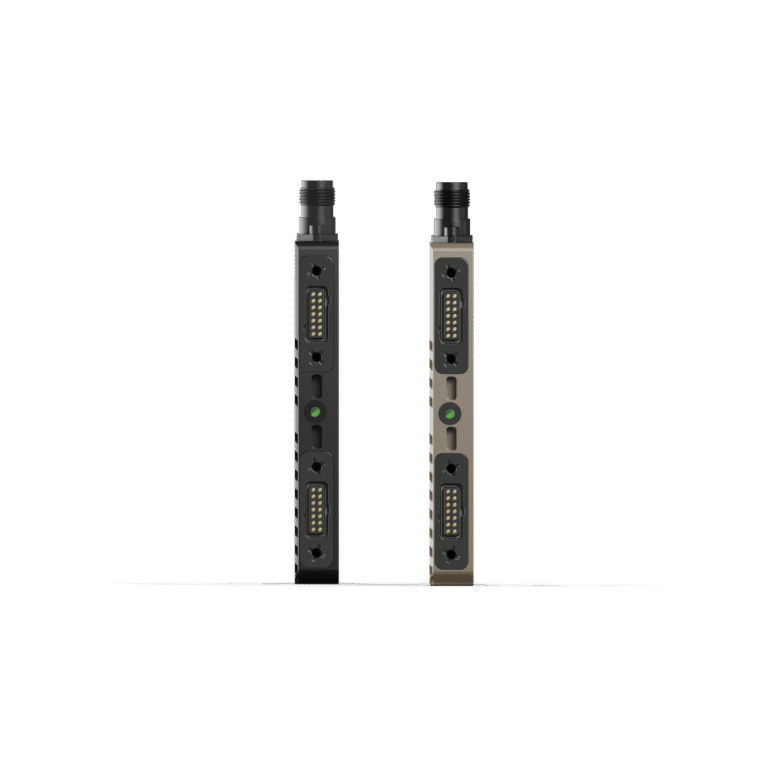

  • I/O Interfaces: Ethernet, USB, RS232
  • Advanced Encryption: AES256; FIPS 140-3
  • Available in rugged handheld (externally powered) or non-rugged OEM module

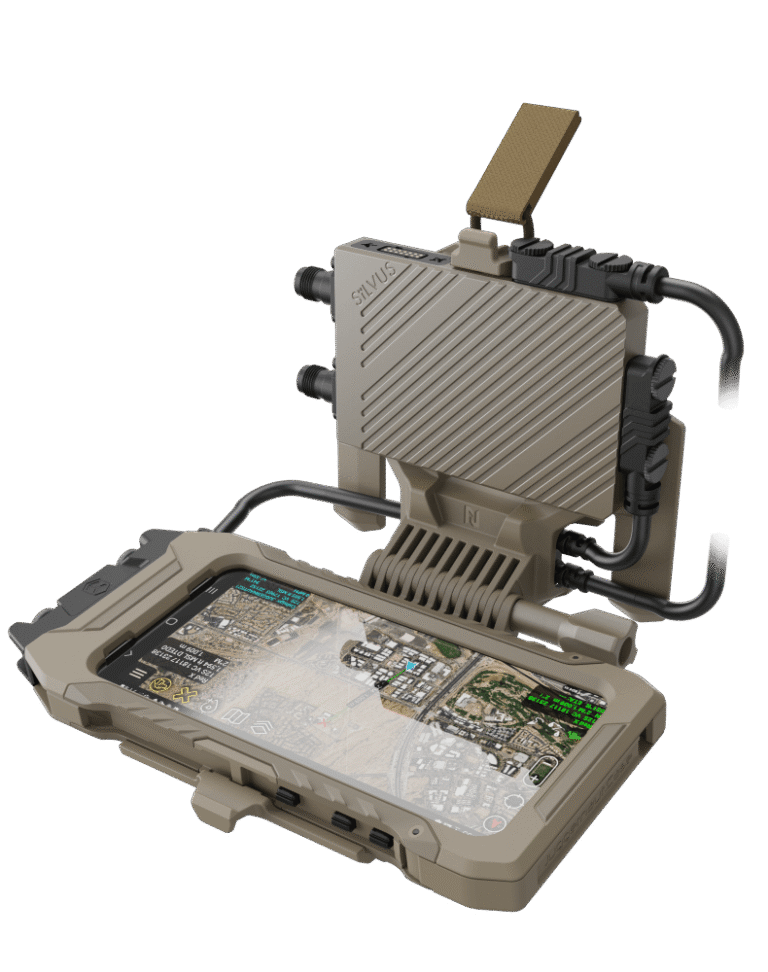

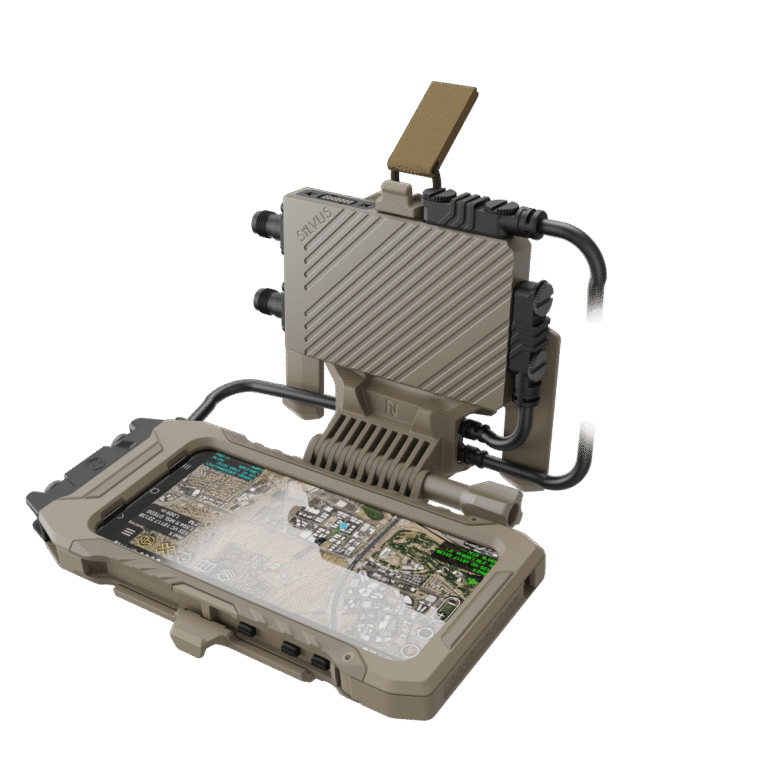

STREAMCASTER NEXUS
NEXT GENERATION TACTICAL NETWORKING SYSTEM

CENTRAL HUB FOR THE CONNECTED OPERATOR

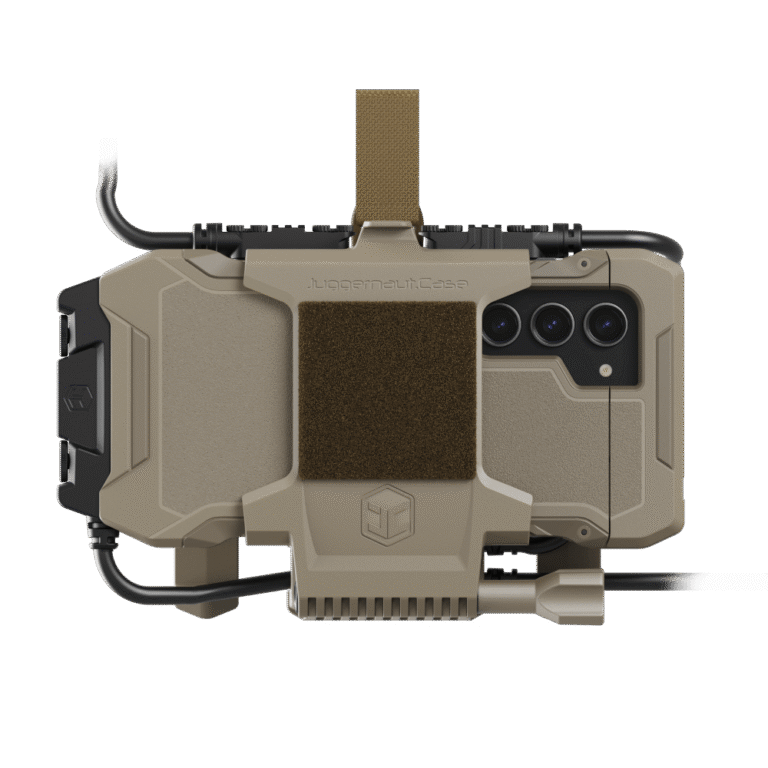

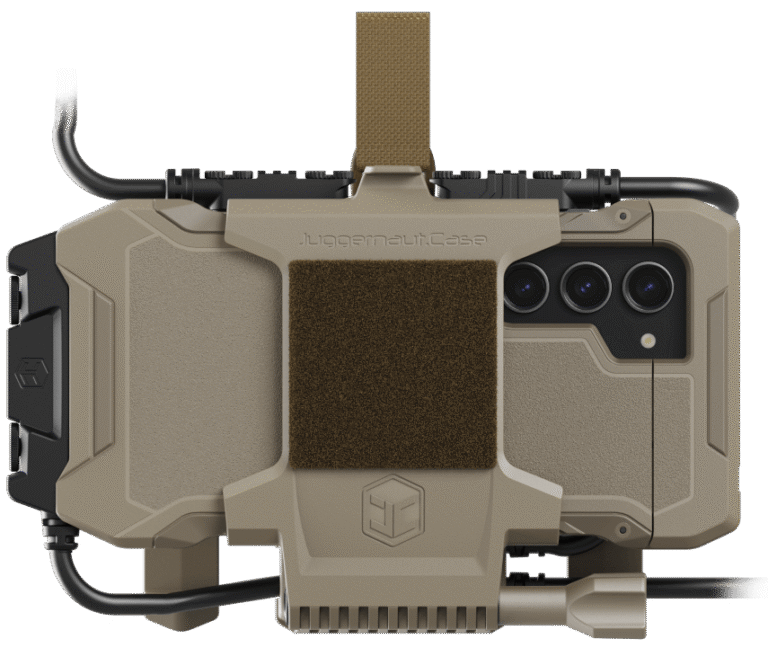

StreamCaster NEXUS seamlessly pairs the SM5200 with Samsung’s mission-ready EUD to deliver mission-critical connectivity and real-time situational awareness. Custom designed Juggernaut chest-mount features snag-free cable routing that minimizes weight and maximizes operator freedom. With access to ATAK and other mission apps, operators gain geospatial intelligence, mission planning and can manage radio & network configurations through the StreamScape ATAK Plug-in. Multiple I/O connectors, Dual PTT, dedicated RoIP interface and Nett Warrior unified power options combine to make StreamCaster NEXUS an operator-focused, next generation Tactical Networking System engineered for today’s dynamically changing battlespace.

KEY FEATURES

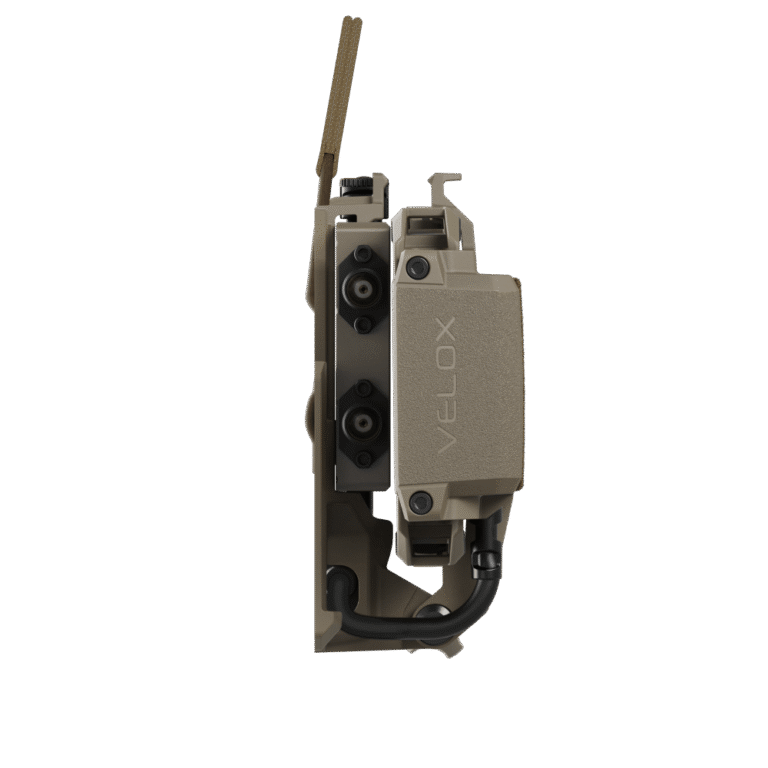

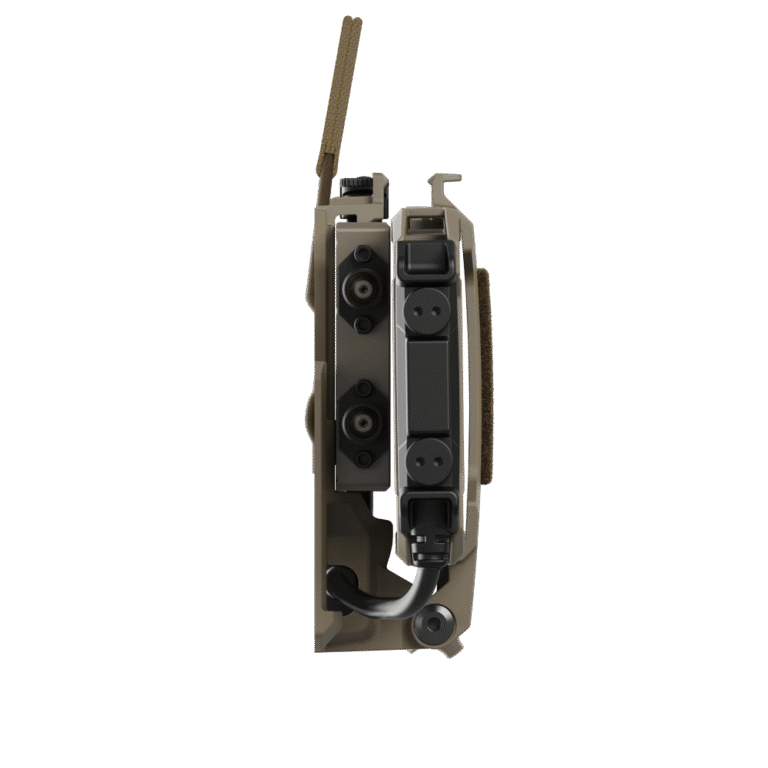

  • Available in Juggernaut Armor Mount and VELOX configurations
  • Compatible with Samsung S23 or S23TE EUD
  • ATAK – Access geospatial, sensor & cursor on target intelligence
  • StreamScape ATAK Plug-in – SM5200 & configurable PTT settings
  • Multiple I/O Connectors – Ethernet, USB, RS232
  • Nett Warrior – Unified radio/EUD power distribution

STREAMCASTER MINI 5200 KEY FEATURES

Powered by the cutting-edge MN-MIMO waveform:

COFDM

  • Auto link adaptation to continually optimize throughput in dynamic environments
  • Exceptional Multipath and NLOS performance
  • Enhanced mobility for high-speed platforms
  • 1.25/2/5/5/10/20 MHz bandwith modes



MIMO

  • TX Beamforming – Up to 4x Effective Transmit Power, delivering increased range and throughput
  • Spatial Multiplexing (enhanced throughput)
  • Space Time Coding (enhanced robustness)
  • RX Beamforming (enhanced reception)



MOBILE AD HOC NETWORKING (MANET)

  • Self-healing/self-forming mesh
  • Single frequency Time Division Duplexing (TDD)
  • Up to 559 nodes in a single network
  • All topologies supported including star, hub/spoke, series/relay, fixed backbone infrastructure, and hybrid

Additional FEATURES

  • Rugged IP68 construction
  • Single/Dual Band Frequency Options
  • Dual PTT with Independent L/R audio channels
  • Dedicated RoIP Interface
  • I/O Interfaces – Ethernet, USB, RS232
  • Advanced Encryption – AES256, FIPS 140-3
  • Available in rugged handheld (externally powered) or non-rugged OEM module

SPECTRUM DOMINANCE 2.0

An ever-expanding suite of LPI/LPD, Anti-Jam EW resiliency, and Advanced Threat Protection capabilities.
Achieve secure and protected communications without sacrificing performance.


STREAMSCAPE

THE INDUSTRY’S FAVORITE NETWORK MANAGEMENT GUI

Powerful network management software – embedded in every StreamCaster radio, and accessible from virtually any computer, laptop, tablet, or smartphone.

  • Network topology page – an intuitive graphical illustration of signal strengths and congestion across the network
  • Table view – a tabular representation of network metrics including signal interference levels, traffic statistics, and air time usage
  • Map overlay – track the GPS location and status of nodes in real time on local, cloud-based, or user-supplied maps
  • Network-wide admin tools – update settings, load profiles, and update firmware on one node or on the network as a whole
  • Essential diagnostics – RF spectrum analyzer, temperature and voltage monitoring, and automatic alarms



STREAMSCAPE 5

Firmware Update Now Available

HARSH CONDITIONS. UNPREDICTABLE CIRCUMSTANCES.

WATCH STREAMCASTER PREVAIL.

WE DON’T JUST CLAIM SUPERIORITY. WE PROVE IT.

Not only do we build superior technology, we help you get the most from it. Out-of-the-box functionality. Ongoing support. Relentless research and development. Contact our sales team to discover how we’re leading the MIMO revolution.

The following notice applies to the sale, lease, or offer of this device other than the sale or lease of this device for use by the United States Government or for export of this device:

This device has not been authorized as required by the rules of the Federal Communications Commission. This device is not, and may not be, offered for sale or lease, or sold or leased, until authorization is obtained.

Please contact Silvus if you have questions about the FCC approval status or requirements that pertain to this device including whether an FCC approved version of this device is available and the sale or lease of this device for use by the United States Government or for export. Devices that are exported are subject to the laws of the countries into which the devices are exported.
