StreamCaster PRISM

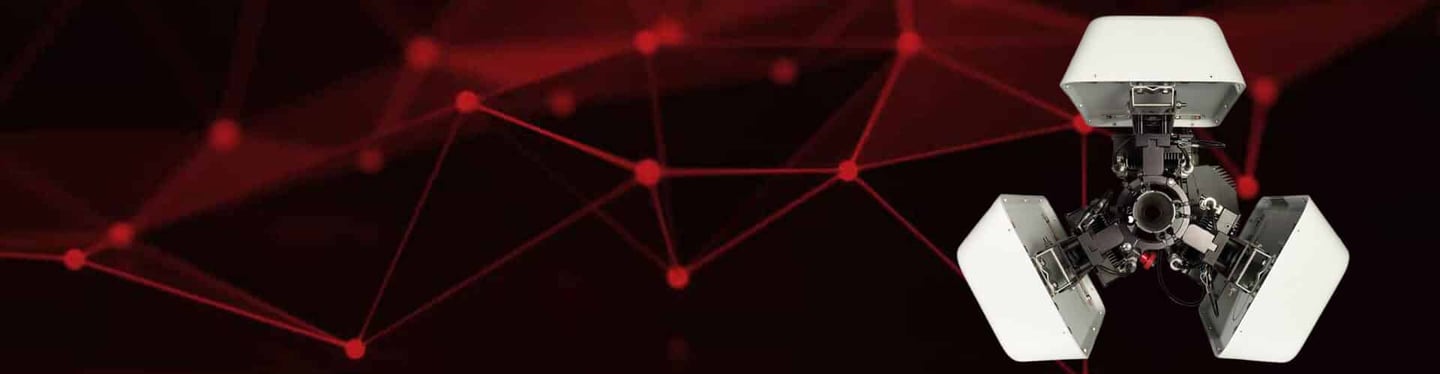

StreamCaster PRISM Antenna Systems
Extend The Range Of Your Network To Achieve Unrivaled Coverage Throughout Your Area Of Operation

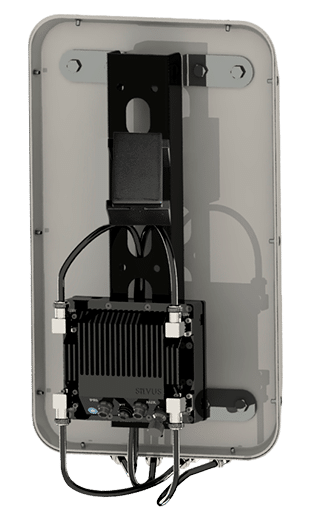

The StreamCaster PRISM family of modular Precision Integrated Sectorized MIMO antenna radio systems provide long-range sectorized coverage across wide areas of operation. Designed for tactical operations, at-the-halt and fixed infrastructure applications, StreamCaster PRISM’s ruggedized construction and toolless set-up enables it to be rapidly deployed for operational flexibility.
The StreamCaster PRISM is JETDAS designated as Model AN/TSC-248(v)1.
-2.jpg)
Sector Antenna Options

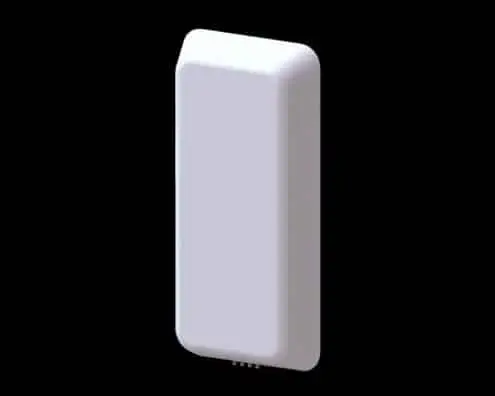

L–Band
Integrated Sector Antenna
- 12 dBi Gain
- 120° Horizontal Beamwidth
- 10° Vertical Beamwidth
- Dual Polarity

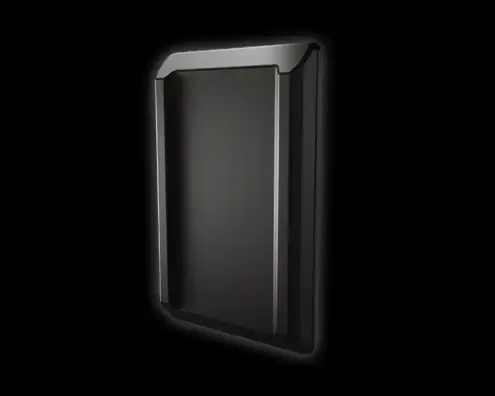

L/S-Band
Integrated Sector Antenna
- 13 dBi Gain
- 90° Horizontal Beamwidth
- 16° Vertical Beamwidth
- Dual Polarity

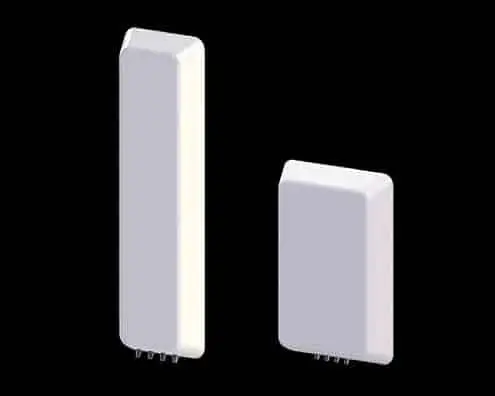

S–Band
Integrated Sector Antenna
- 12-15 dBi Gain
- 90° to 120° Horizontal Beamwidth
- 8° to 12° Vertical Beamwidth
- Dual Polarity

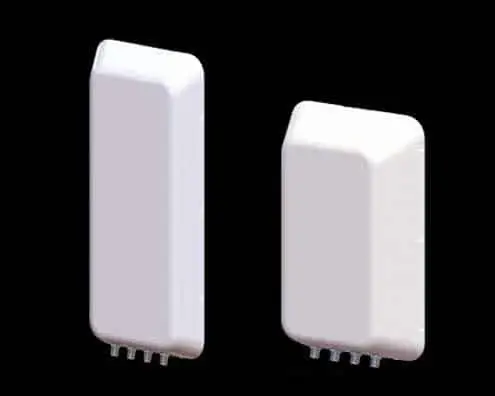

C–Band
Integrated Sector Antenna
- 12-16 dBi Gain
- 90° to 120° Horizontal Beamwidth
- 8° to 12° Vertical Beamwidth
- Dual Polarity

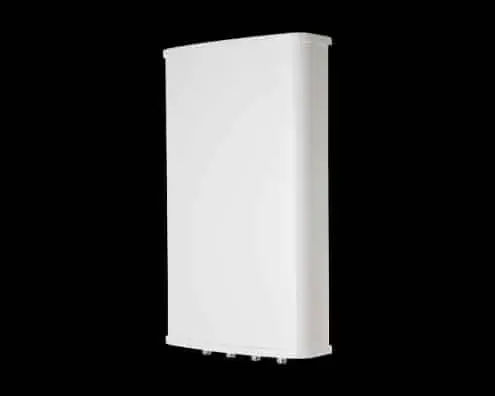

S/C–Band
Integrated Sector Antenna
- 11/12 dBi Gain
- 90° Horizontal Beamwidth
- 9°/11° Vertical Beamwidth
- Dual Polarity

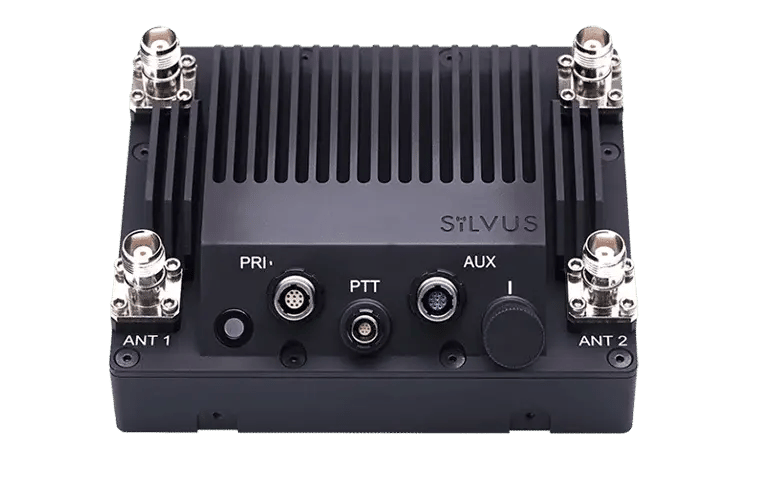

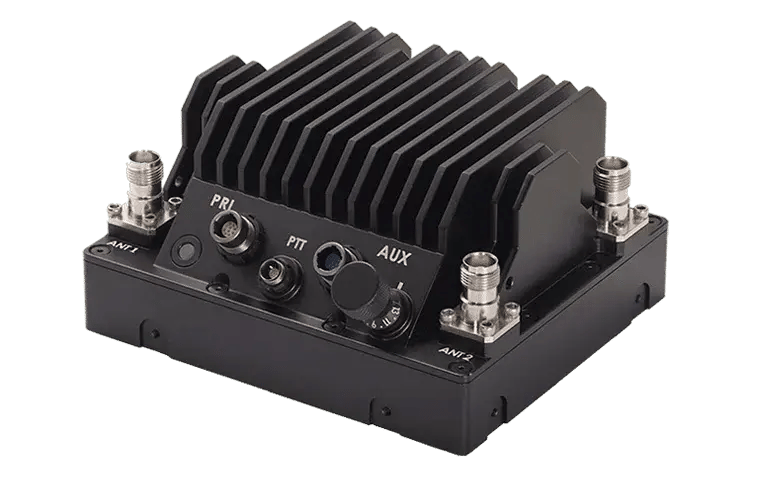

StreamCaster 4400 Enhanced (SC4400E)
4X4 MIMO Radio

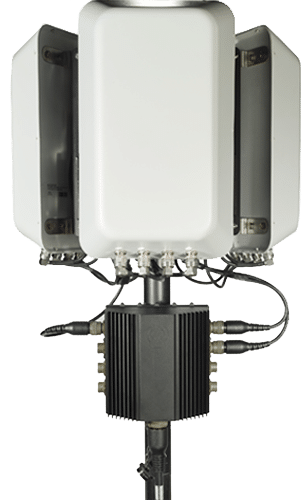

StreamCaster PRISM combines the performance of StreamCaster MANET radios with high-gain, dual polarity sector antennas to deliver up to 360° of coverage for air and ground applications.
SC4400E Features
- Up to 20 Watts Output Power (80W effective radiated power, thanks to TX Eigen Beamforming)
- Single/Dual Band (300MHz – 6GHz)
- Up to 100 Mbps Data Rate
Down Mast Cable
(Power/Ethernet)
Power & Ethernet Splitter Cable

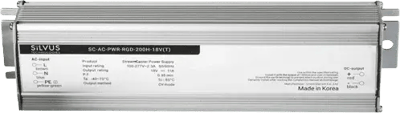

AC Power Supply

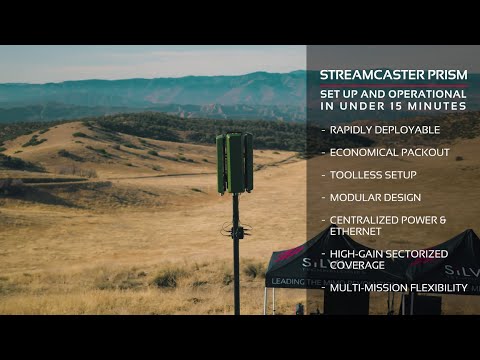

Modular Design | Rapidly Deployable | Unrivaled Coverage & Range
Designed to Match Your Mission: A single sector can be deployed tactically on masts to create a long-range UAS ground control station, or multiple sectors can be permanently installed on rooftops, mountain peaks, or towers to create a strategic communications infrastructure for citywide mesh networks or border security operations.

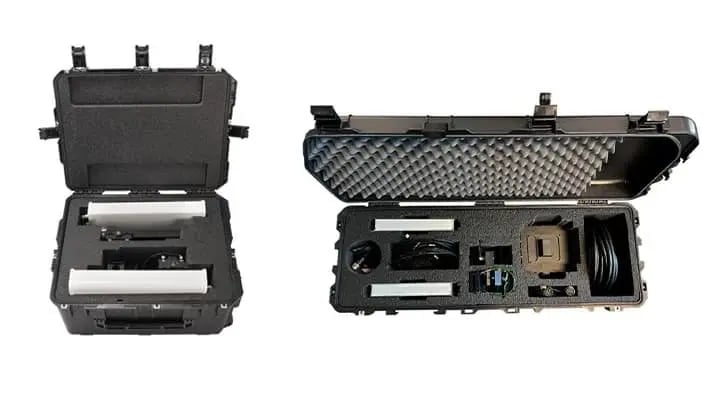

Economical Packout
Antenna Transit Case & Accessories Case
Reduced Operational Footprint
Extend the Range of Your Network

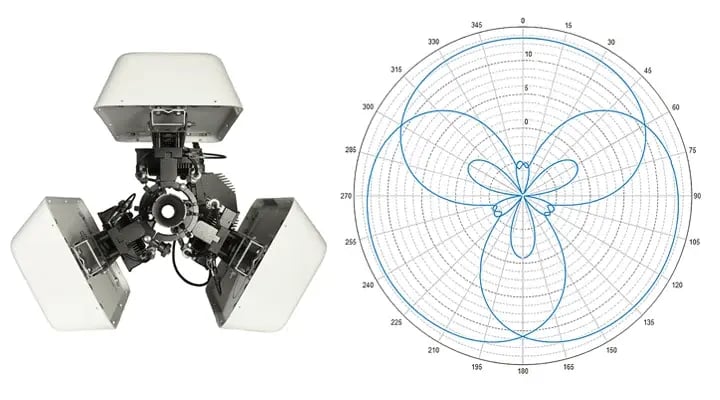

Multi-Sector Coverage (Up to 360°)
Achieve a Blanket of Coverage Throughout your Area of Operation
