STREAMCASTER NEXUS

NEXT GENERATION TACTICAL NETWORKING SYSTEM For the dismounted operator

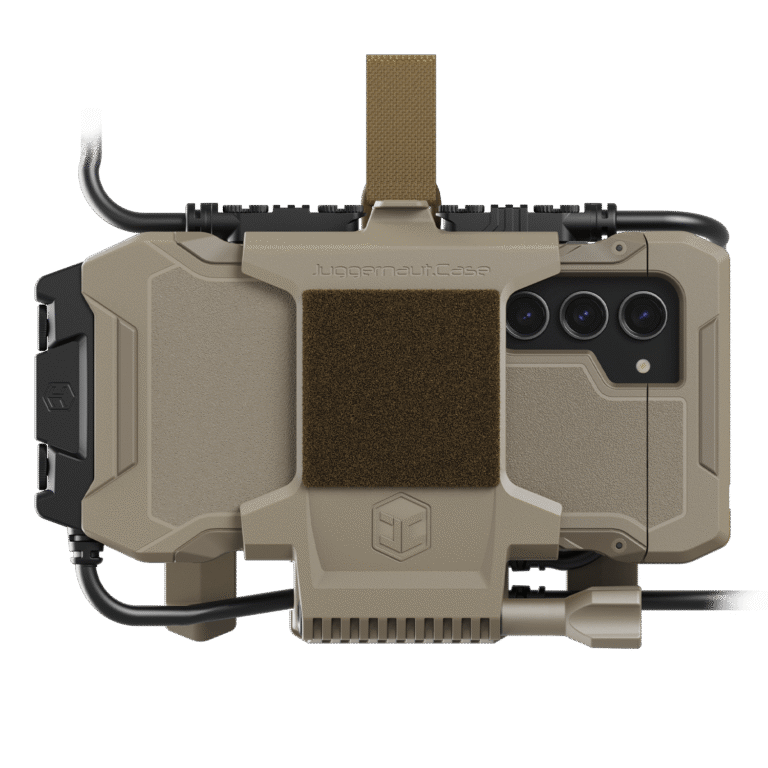

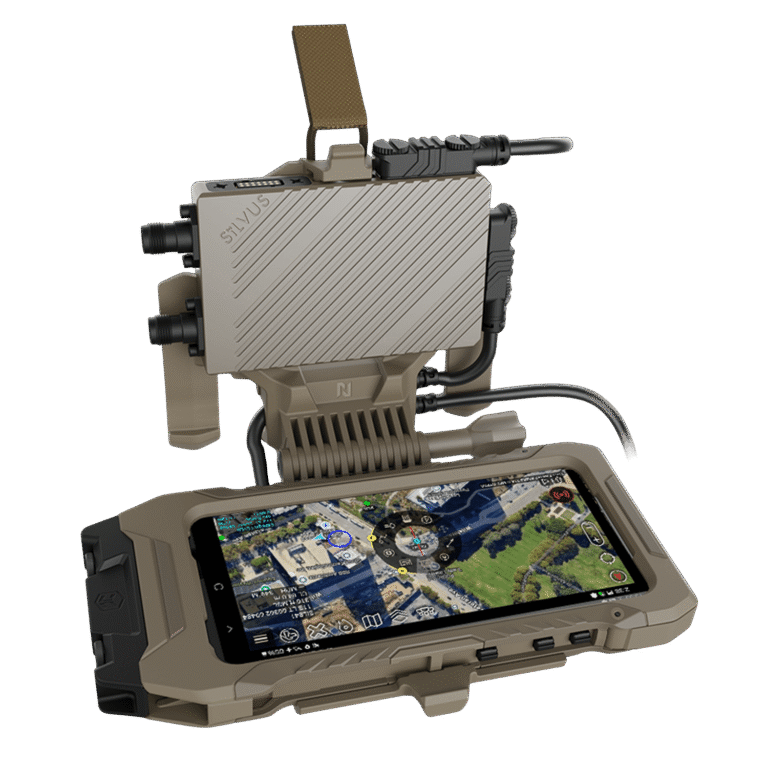

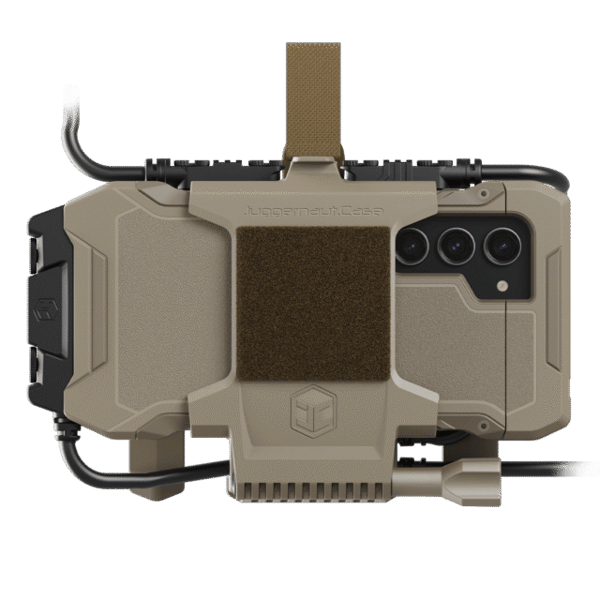

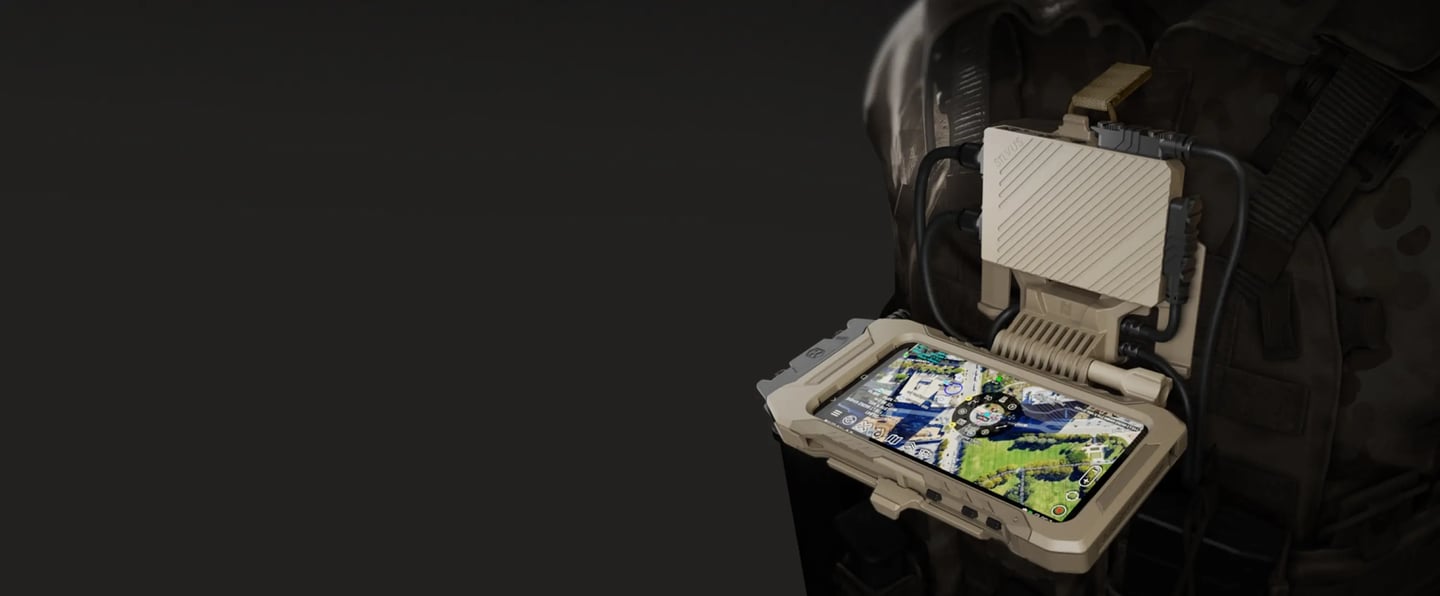

Purpose-built for the dismounted operator, StreamCaster NEXUS seamlessly pairs the ultra-slim SM5200 MANET radio with Samsung’s mission-ready EUD to deliver mission-critical connectivity and real-time situational awareness at the tactical edge. Custom designed Juggernaut chest-mount features streamlined, snag-free cable routing that minimizes weight and maximizes operator freedom.

With access to ATAK and other mission apps, operators gain geospatial intelligence, mission planning tools and can manage radio & network configurations through the StreamScape ATAK plug-in. Available access to Spectrum Dominance 2.0 – Silvus’ ever-expanding suite of LPI/LPD, Anti-Jam and Advanced Threat Protection capabilities – ensures secure & protected communications in EW contested environments.

Multiple I/O connectors, Dual PTT, dedicated RoIP interface and Nett Warrior unified power options combine to make StreamCaster NEXUS an operator-focused, next generation tactical networking system, engineered for today’s dynamically changing battlespace.

STREAMCASTER NEXUS
ADVANCED NETWORKING AT MISSION SPEED

CENTRAL HUB FOR THE CONNECTED OPERATOR

StreamCaster NEXUS features the next generation SM5200 MANET radio, providing high-fidelity video, voice and IP data communications with optimized output power and data throughput to maximize network performance. At the heart of the SM5200 is Silvus’ proprietary MN-MIMO waveform technology that delivers scalable data connectivity – operationally proven to connect 550+ nodes. Available Samsung S23/S23TE EUD provides mission-ready mobility with powerful on-board processing, advanced security and exclusive MilSpec features.

KEY FEATURES

  • Available in Juggernaut Armor Mount and VELOX configurations
  • Compatible with Samsung S23 or S23TE EUD
  • ATAK – Access geospatial, sensor & cursor on target intelligence
  • StreamScape ATAK Plug-in – SM5200 & configurable PTT settings
  • Multiple I/O Connectors – Ethernet, USB, RS232
  • Nett Warrior – Unified radio/EUD power distribution

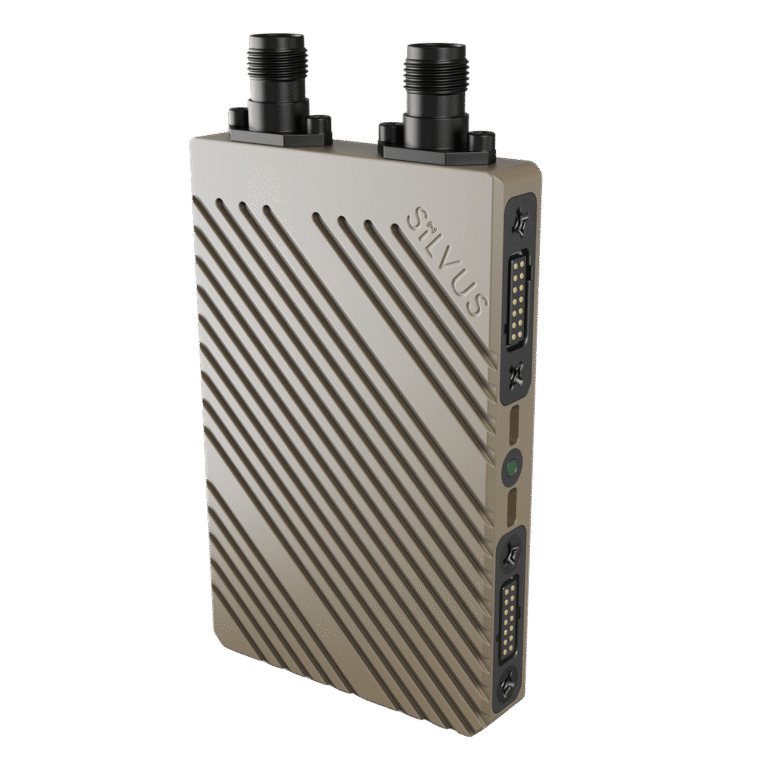

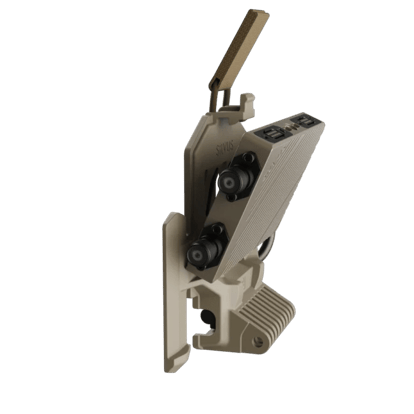

STREAMCASTER MINI 5200 (SM5200)

NEXT GENERATION MANET RADIO PERFORMANCE

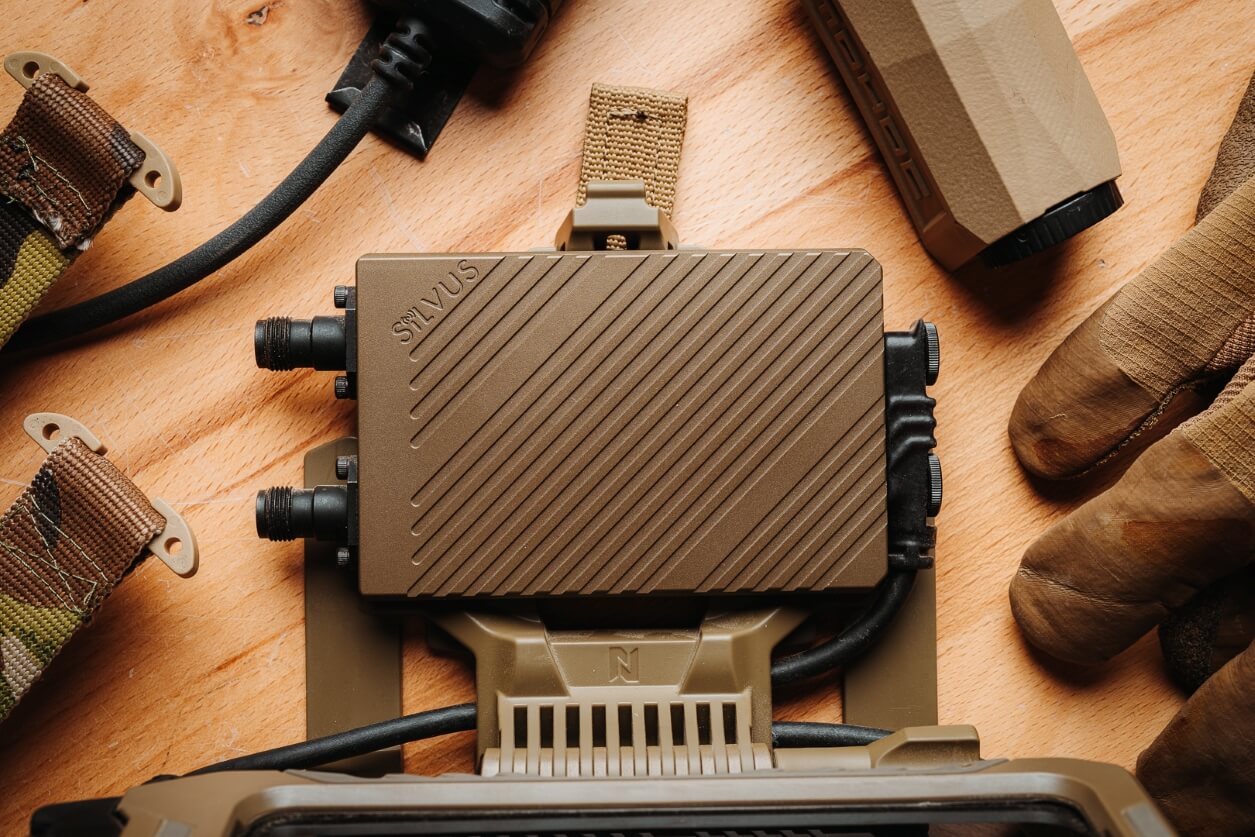

The ultra-slim SM5200 delivers the performance of a 2×2 MIMO radio in a rugged, low-profile design. It easily detaches from StreamCaster NEXUS via a quick-release, snap-lock system enabling flexible standalone radio operations. Powered by Silvus’ battle-proven MN-MIMO waveform, the SM5200 is capable of linking hundreds of nodes through a scalable mesh network that’s natively compatible with 4000-series StreamCaster MANET radios. Dual PTT provides precise audio control, while a dedicated RoIP interface bridges LMR systems into the Silvus mesh network. With available access to Spectrum Dominance 2.0 – an ever-expanding suite of LPI/LPD, Anti-Jamming and Advanced Threat Protection capabilities – the SM5200 ensures secure, resilient connectivity in contested environments without sacrificing performance.

KEY FEATURES

  • Up to 2 Watts output power (4W effective, thanks to TX Eigen Beamforming)
  • Up to 100 Mbps Data Throughput
  • MN-MIMO waveform: 550+ node scalability
  • Single/Dual Band Frequency Options
  • Dual PTT with Independent L/R audio channels
  • Dedicated RoIP interface
  • Advanced Encryption – AES 256, FIPS 140-3
Picture Thumbnail
Picture Thumbnail

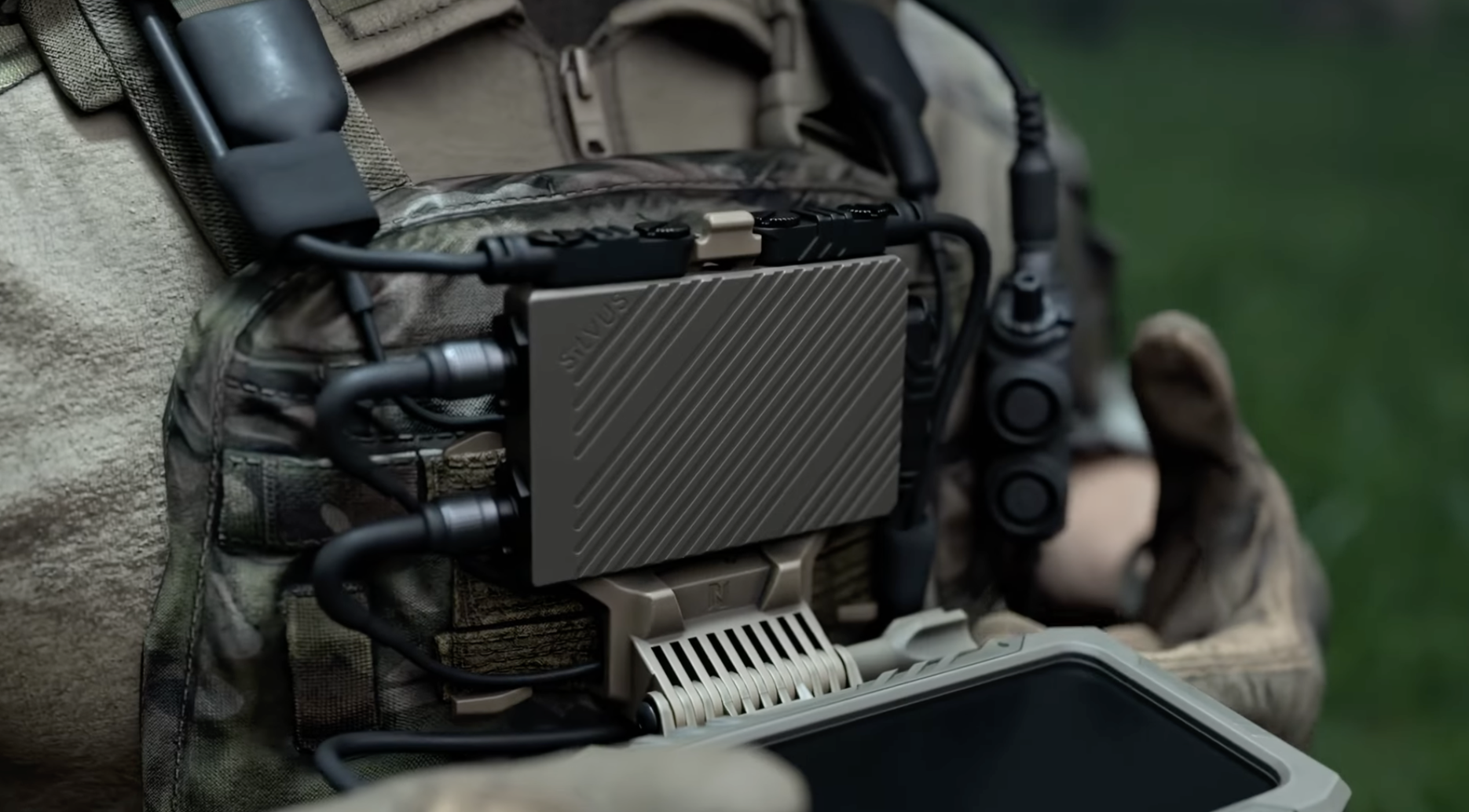

Operator Centric | Low Profile Design —

Compact, modular design reduces operator load-out, maximizing mission-focused mobility

  • Ruggedized for the mission — Juggernaut Armor & VELOX chest mount configurations
  • Ultra-slim & lightweight — streamlined & snag-free cable management
  • Low profile design — SM5200 MANET radio virtually disappears into vest
Picture Thumbnail
Picture Thumbnail

Advanced Networking | At Mission Speed —

StreamCaster SM5200 MANET radio delivers assured voice, high-fidelity video and IP data communications

  • Up to 2W Native, 4W Effective TX power
  • Up to 100 Mbps data rate
  • MN-MIMO waveform - 550+ node scalability
  • Dual PTT with independent L/R audio
  • Dedicated RoIP interface
Picture Thumbnail
Picture Thumbnail

Central Hub | For The Connected Operator —

Samsung S23/S23TE provides real-time situational awareness, mission planning & radio configuration

  • ATAK - access geospatial, sensor & cursor on target intelligence
  • StreamScape ATAK plug-in: SM5200 & configurable PTT settings
  • Multiple I/O connectors - Ethernet, USB, RS232
  • Nett Warrior - unified radio/EUD power distribution
Picture Thumbnail
Picture Thumbnail

Achieve Spectrum Dominance | Built for the Electromagnetic Fight —

Access ever-expanding suite of LPI/LPD, Anti-Jamming and Advanced Threat Protection capabilities

  • Secure & protected comms without sacrificing performance
  • Designed to thrive in EW contested environments
  • Achieve mission objectives even under electronic attack

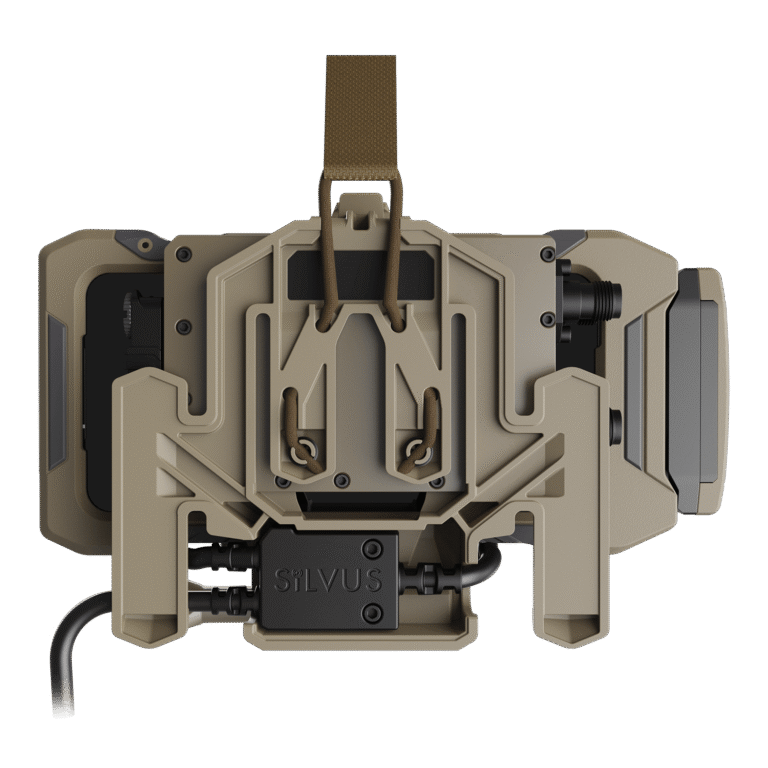

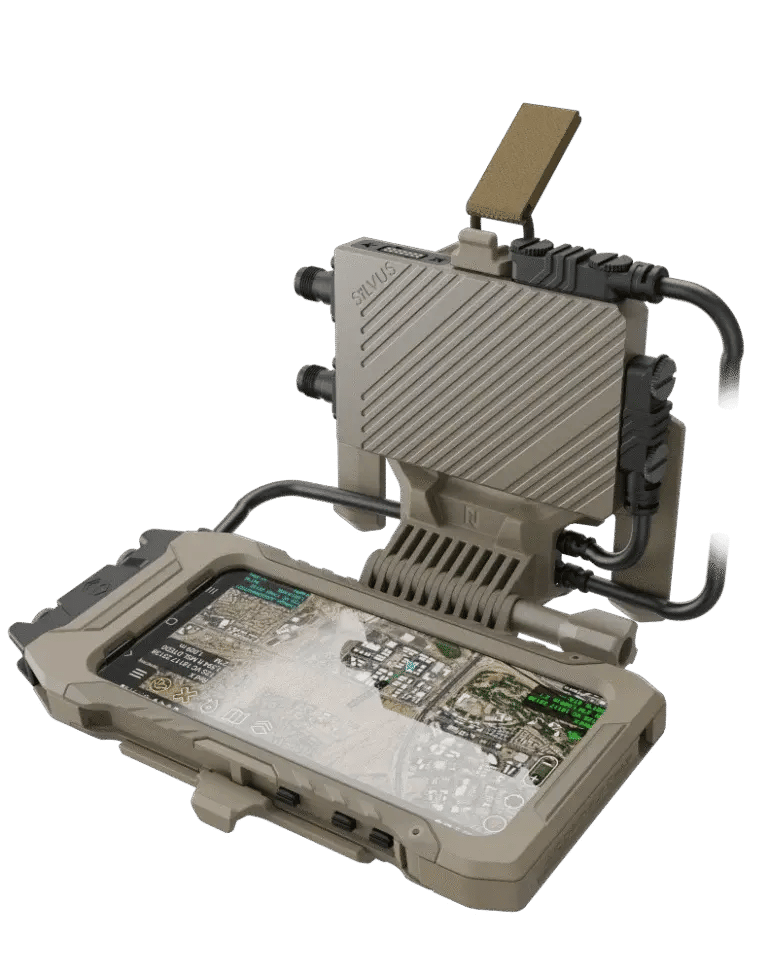

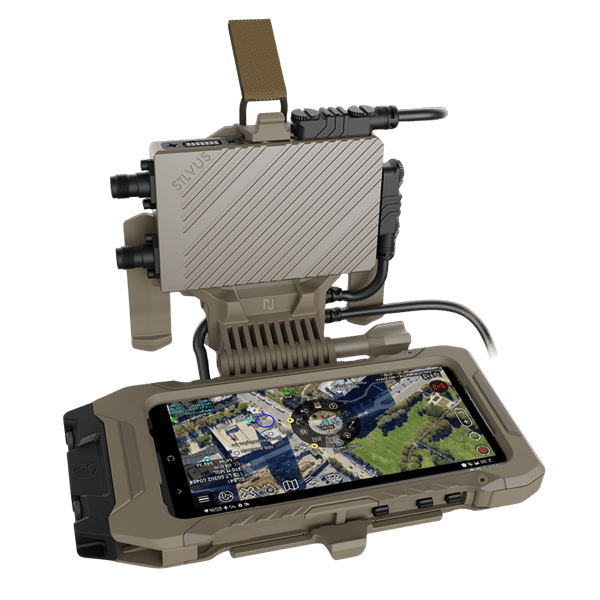

STREAMCASTER NEXUS - DEPLOYMENT KIT

  • Directional LED Indicator (Operator Only Visibility)
    ETH/USB/Serial Alternate Power Input
    Low Glare Black TNC Connectors
    Embedded Downlead to Power Source
    (USB-PD or 9-32VDC)
    PTT (L/R Audio)
    ROIP
    EUD/PWR
    Snap Lock
    Radio Mount
    Streamlined Cable Routing and Management

SPECTRUM DOMINANCE 2.0

Expansive suite of LPI/LPD and Anti-Jamming resiliency capabilities.
Achieve secure and protected communications without sacrificing performance.


STREAMSCAPE

THE INDUSTRY’S FAVORITE NETWORK MANAGEMENT GUI

Powerful network management software – embedded in every StreamCaster radio, and accessible from virtually any computer, laptop, tablet, or smartphone.

  • Network topology page – an intuitive graphical illustration of signal strengths and congestion across the network
  • Table view – a tabular representation of network metrics including signal interference levels, traffic statistics, and air time usage
  • Map overlay – track the GPS location and status of nodes in real time on local, cloud-based, or user-supplied maps
  • Network-wide admin tools – update settings, load profiles, and update firmware on one node or on the network as a whole
  • Essential diagnostics – RF spectrum analyzer, temperature and voltage monitoring, and automatic alarms



STREAMSCAPE 5

Firmware Update Now Available

HARSH CONDITIONS. UNPREDICTABLE CIRCUMSTANCES.

WATCH STREAMCASTER PREVAIL.

WE DON’T JUST CLAIM SUPERIORITY. WE PROVE IT.

Not only do we build superior technology, we help you get the most from it. Out-of-the-box functionality. Ongoing support. Relentless research and development. Contact our sales team to discover how we’re leading the MIMO revolution.
