StreamScape GUI & ATAK Plugin

Products > StreamScape GUI & ATAK Plugin

StreamScape Network Management GUI

STREAMSCAPE — THE INDUSTRY’S FAVORITE NETWORK MANAGEMENT GUI

streamscape

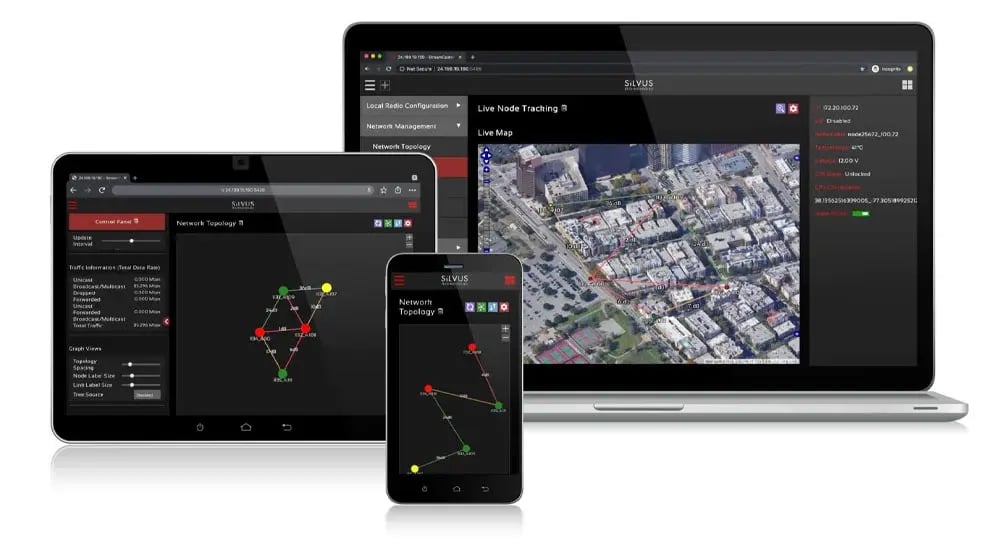

POWERFUL NETWORK MANAGEMENT SOFTWARE

Embedded in every StreamCaster radio, and accessible from virtually any computer, laptop, tablet, or smartphone.

  • Network Topology Page: An intuitive graphical illustration of signal strengths and congestion across the network.
  • Table View: A tabular representation of network metrics including signal interference levels, traffic statistics, and air time usage.
  • Map Overlay: Track the GPS location and status of nodes in real time on local, cloud-based, or user-supplied maps.
  • Network-Wide Admin Tools: Update settings, load profiles, and update firmware on one node or on the network as a whole.
  • Essential Diagnostics: RF spectrum analyzer, temperature and voltage monitoring, and automatic alarms.
  • StreamScape 5.0 Firmware Now Available: Download & Install



TAKE STREAMSCAPE FOR A TEST DRIVE



streamscape atak plugin

integrated streamscape capabilities for every atak-enabled eud

Take control of your communications network — anywhere, anytime. The free-to-use StreamScape ATAK Plugin brings the power of StreamCaster® MANET radios and the intuitive StreamScape GUI directly to your handheld ATAK-enabled EUD.

Designed for mission-critical mobility, this bespoke plugin extends beyond basic ATAK functionality and puts advanced radio and network management capabilities right at your fingertips, giving you full situational awareness and control on the go — no laptop required. Whether you’re on the ground, in a vehicle, or on the move, you’ll have the tools to monitor and configure your StreamCaster MANET radio network in real time.

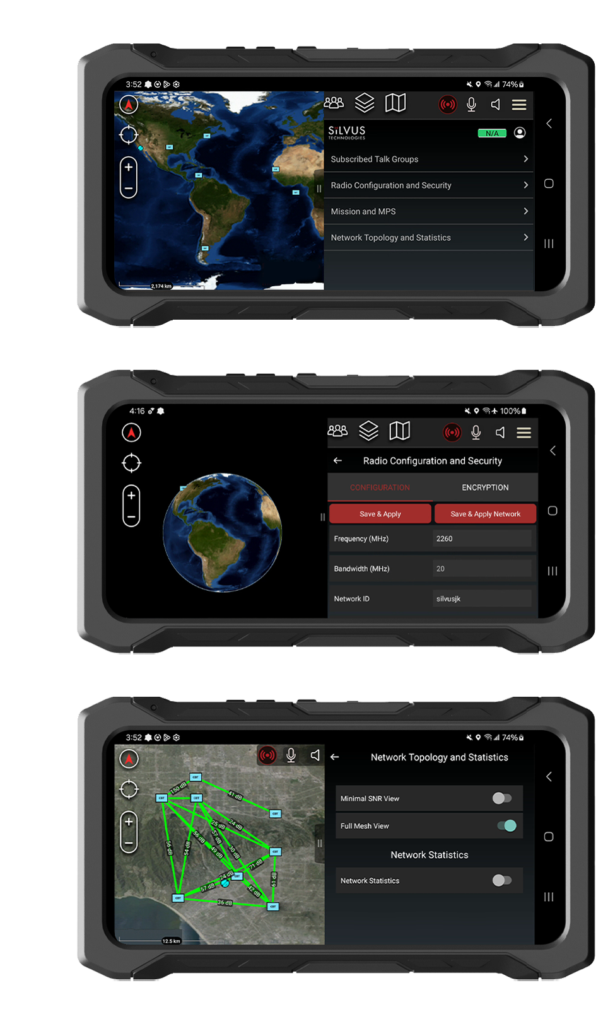

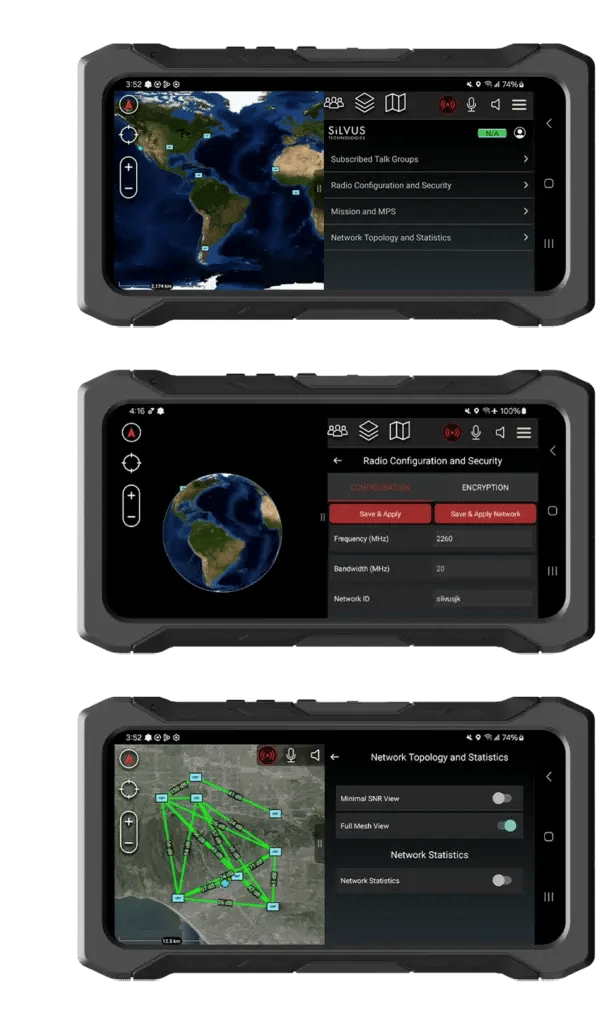

KEY FEATURES

  • Real-Time Radio Configuration: Directly adjust network-wide configurations, radio frequency, bandwidth, link distance, transmit power, and many more parameters.
  • Dynamic Network Topology Visualization: View network topology overlaid on the ATAK map, including node status and link quality (50+ nodes).
  • Performance Monitoring & Diagnostics: Real-time signal-to-noise ratio reporting, interference level display, and battery voltage and percentage monitoring for all connected radios.
  • Rapid Mission Reconfiguration from EUD: Instantly change Mission Profiles and other parameters directly from your End User Device.
  • Login Authentication: Adds a username and password requirement to the radio. Even if the device is stolen, unauthorized users cannot access features, view settings, or retrieve encryption keys.
  • PTT & Talk Group Management: Manage active and monitored talk groups and easily adjust channels and volume for connected audio devices. Pop-up notifications on the ATAK map identify active speakers.

ATAK Version Support: The StreamScape ATAK Plugin currently supports ATAK versions 4.10 through 5.5 while running StreamCaster MANET radio firmware version 5.0.1.5 or newer.



DOWNLOAD THE DATA SHEET

Customer Support Portal Resources:

ACCESS QUICKSTART GUIDE VIEW WALKTHROUGH VIDEO
